集成与超构光子芯片实验室依托武汉大学动力与机械学院，致力于探索光子学前沿领域。 研究方向涵盖微纳尺度光与物质相互作用、片上光镊、集成光芯片与光电超表面芯片四大核心方向， 推动光子学基础研究与光通信、精密传感、生物医学等实际应用的深度融合。 The Integrated and Meta Photonics Lab at Wuhan University explores the frontiers of photonics. Our four core research directions cover micro/nano-scale light–matter interactions, on-chip optical tweezers, integrated photonic chips, and electrooptic metaphotonics, bridging fundamental science and applications in optical communications, precision sensing, and biomedicine.
微纳尺度光与物质相互作用Micro/Nano-scale Light–Matter Interactions
探索光镊、光热效应与光声效应等微纳尺度下光与物质相互作用的基础物理，实现粒子精准捕获与非接触操控。 Probing optical trapping, photothermal, and photoacoustic effects for precision particle manipulation at the micro/nano scale.
片上光镊On-chip Optical Tweezers
利用超表面结构光场与自由曲面波导倏逝场，实现片上粒子三维捕获、分选与单分子传感。 Metasurface-structured light and freeform waveguide evanescent fields for on-chip 3D trapping, sorting, and single-molecule sensing.
集成光芯片Integrated Photonic Chips
原创级联模式转换干涉仪，实现频谱形状与自由谱范围独立调控；覆盖SOI、SiN、LiNbO₃多平台。 Novel cascaded-mode interferometers for independent spectral and temporal engineering across SOI, SiN, and LiNbO₃ platforms.
光电超表面芯片Electrooptic Metaphotonics
电光材料与超表面耦合，实现超高速可编程波前调控，探索高带宽光通信与LiDAR应用。 Coupling electro-optic materials with metasurfaces for ultrafast programmable wavefront control in communications and LiDAR.
1 微纳尺度光与物质相互作用 Micro/Nano-scale Light–Matter Interactions

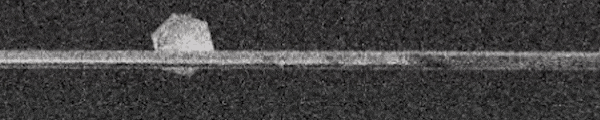

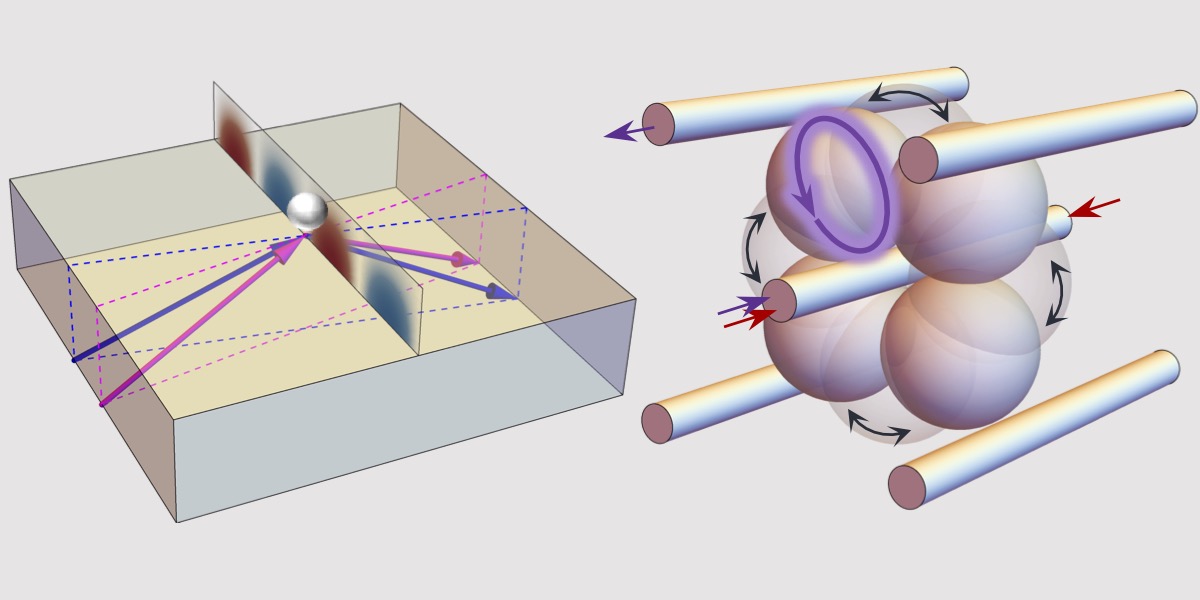

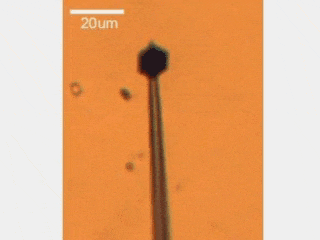

探索微纳尺度下光与物质相互作用的物理机制，涵盖光镊、光热效应与光声效应等多种形式。 基于倏逝场的偏振梯度力、螺旋度梯度力、光泳力与光辐射压力的协同效应， 可实现粒子的精准捕获、定向输运与非接触操控。 相关研究揭示了微纤-微腔系统中的偏振相关力与力矩共振机制， 以及干燥环境中光热驱动微机械臂的新效应，为片上光驱动系统奠定物理基础。 We explore the physical mechanisms of light–matter interactions at the micro/nano scale, encompassing optical trapping, photothermal effects, and photoacoustic phenomena. By leveraging synergetic optical forces, including polarization/helicity gradient forces, photophoretic forces, and radiation pressure in evanescent fields, we demonstrate precision particle capture, directed transport, and non-contact manipulation. Key discoveries include polarization-dependent forces and torques at resonance in microfiber–microcavity systems, and opto-thermo-mechanical actuation in the dry adhesive regime.
2 片上光镊 On-chip Optical Tweezers

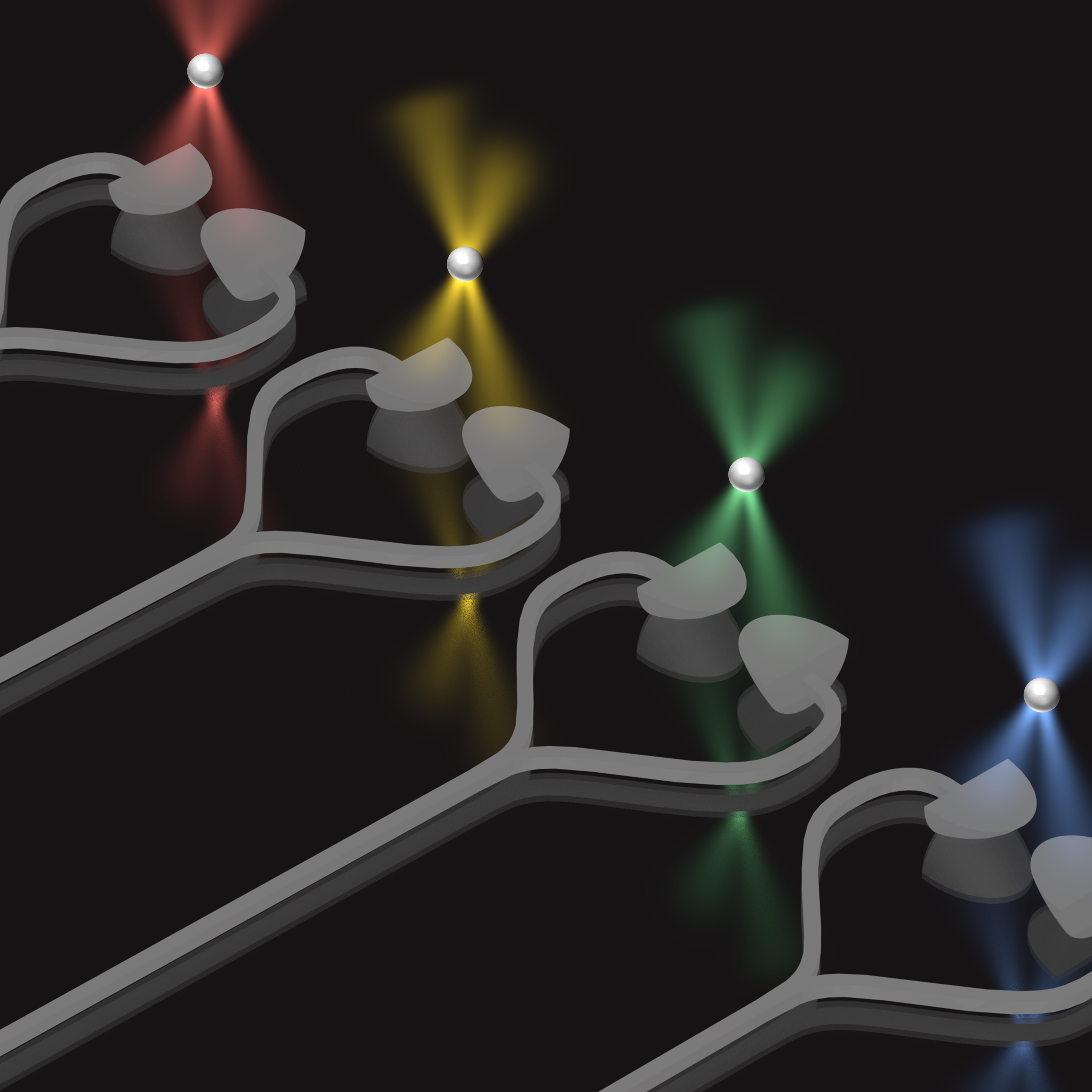

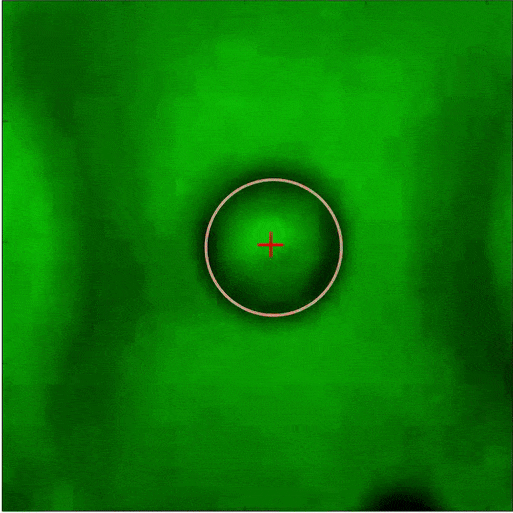

利用超表面产生的结构光场（全息光镊、拉盖尔-高斯光束等）及自由曲面波导的倏逝场， 实现粒子的三维捕获、分选与传感。 与微流控系统集成，构建片上操控平台，为生物检测、单分子传感与纳米粒子分选提供新技术手段。 相关工作首次将超表面自由曲面光学与片上波导技术结合，实现了无需外部透镜的片集成光镊。 We harness structured light fields (holographic tweezers, Laguerre–Gaussian beams) generated by metasurfaces, combined with evanescent fields from freeform waveguides, to achieve on-chip 3D particle trapping, sorting, and sensing. Integration with microfluidic systems provides a compact platform for bio-detection, single-molecule sensing, and nanoparticle sorting. This work demonstrated the first lens-free on-chip optical tweezers using metasurface freeform optics integrated with planar waveguides.
3 集成光芯片 Integrated Photonic Chips

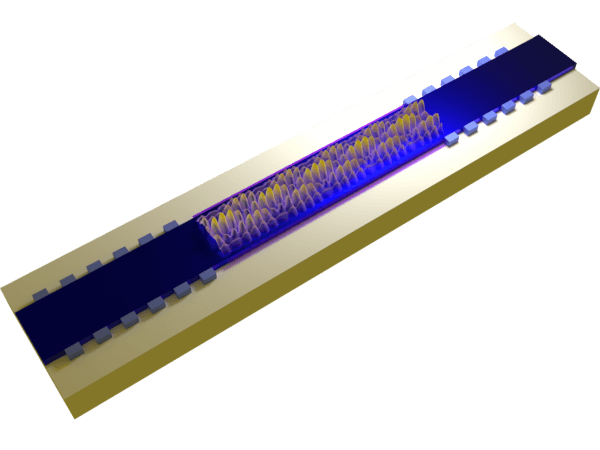

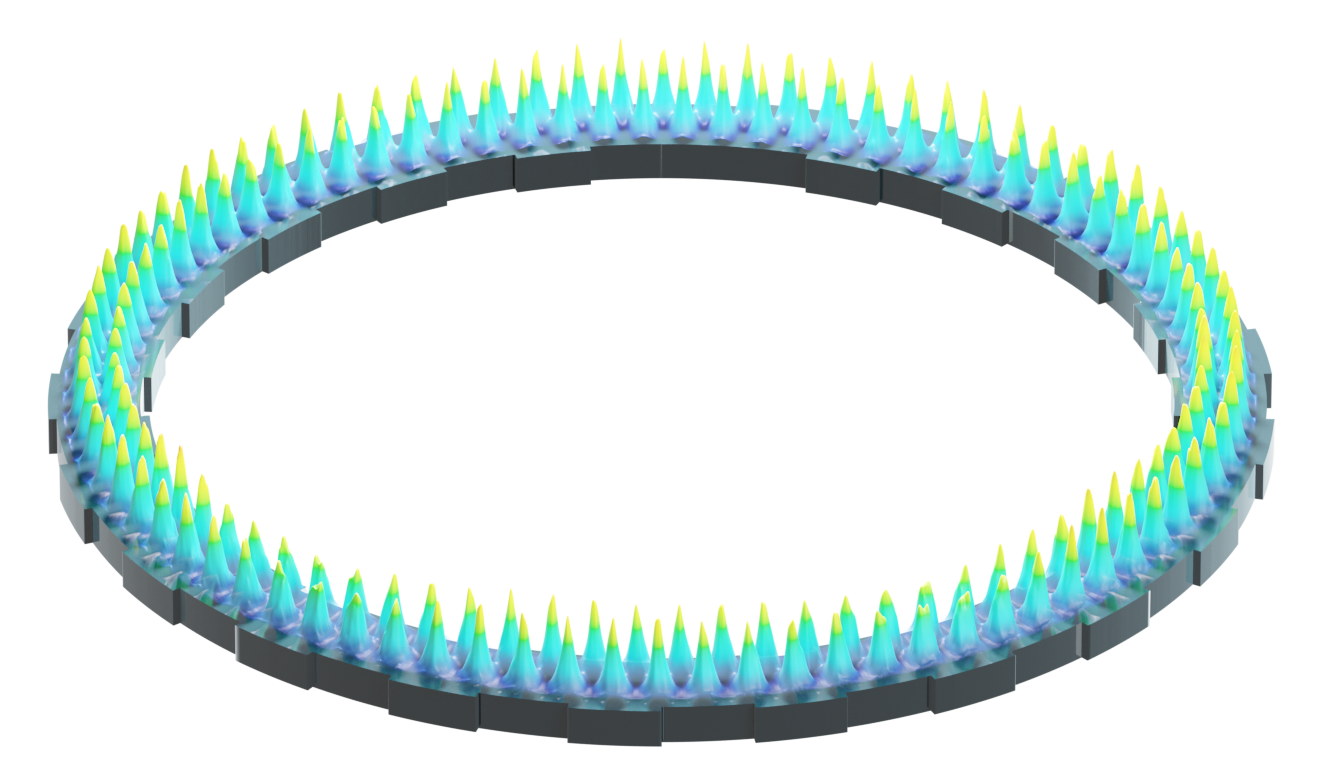

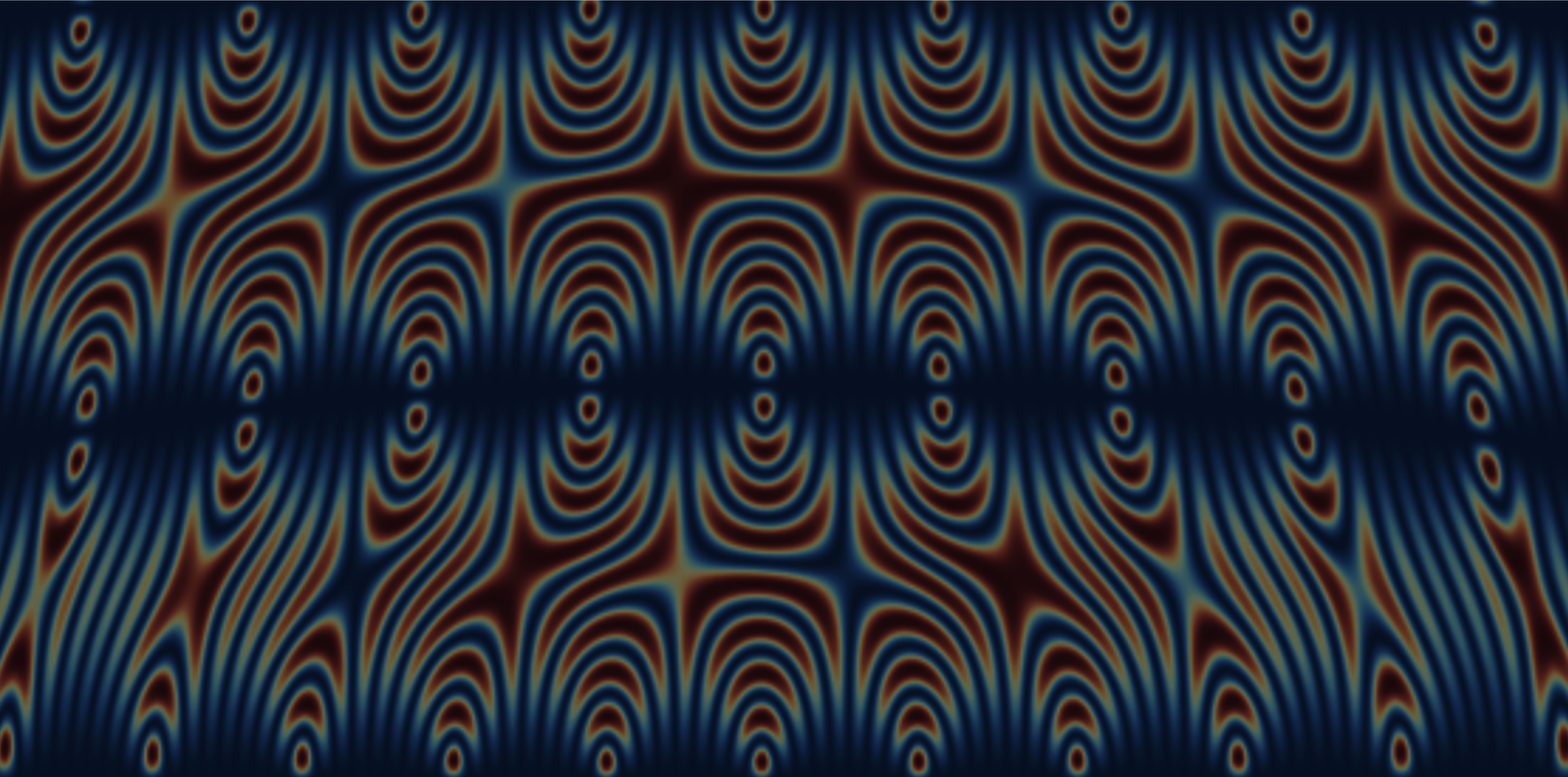

原创提出级联模式转换干涉仪（CMI）结构：通过在单个波导中引入模式选择性耦合， 使光场在不同横向模式之间依序转换，产生等效的多轨道干涉效应。 这一架构可同时且独立地调控谱形状（滤波器线型）、自由谱范围（FSR）与时域波形， 并在单环谐振器中实现多模光子分子效应。 同时发展了基于多模滤波的片上拉曼噪声抑制技术， 相关器件覆盖SOI、氮化硅、铌酸锂薄膜等主流光子集成平台， 为下一代光通信、激光雷达与量子光学提供新型片上解决方案。 We introduced cascaded-mode conversion interferometers (CMIs): by engineering mode-selective coupling within a single waveguide, light sequentially transfers between transverse modes, producing effective multi-path interference. This architecture achieves simultaneous and independent control of spectral shape (filter lineshape), free spectral range (FSR), and temporal waveform, and reveals multimode photonic molecule effects in a single ring resonator. We also developed on-chip Raman noise suppression via multimode spectral filtering. Devices span SOI, silicon nitride, and thin-film lithium niobate platforms, providing new on-chip solutions for optical communications, LiDAR, and quantum optics.
4 光电超表面芯片 Electrooptic Metaphotonics
将电光材料（铌酸锂等）与超表面纳米谐振器耦合，通过外加电场动态调控谐振器的相位响应， 实现超高速、可编程的波前调控。相较于传统液晶或MEMS空间光调制器， 电光超表面在调制带宽（GHz量级）和集成度方面具有显著优势。 探索集成光驱系统在高带宽自由空间光通信、高分辨率固态LiDAR与量子信息处理中的应用前景。 By coupling electro-optic materials (LiNbO₃, etc.) with metasurface nano-resonators, external electric fields dynamically tune the phase response of individual resonators, enabling ultrafast programmable wavefront control. Compared with conventional liquid crystal or MEMS spatial light modulators, electro-optic metasurfaces offer substantial advantages in modulation bandwidth (GHz-scale) and integration density. We target applications in high-bandwidth free-space optical communications, high-resolution solid-state LiDAR, and quantum information processing.
实验设备介绍正在整理中，敬请期待。 Facilities information is being compiled. Please check back soon.
项目经费Fundings
项目经费信息正在整理中，敬请期待。 Funding information is being compiled. Please check back soon.
合作者Collaborators
- Capasso Group, Harvard University, USA
- Ileana-Cristina Benea-Chelmus, EPFL, Switzerland
- Vincent Ginis, Vrije Universiteit Brussel, Belgium
- Qiu Lab, Westlake University, China
- Qiu Lab, National University of Singapore, Singapore
- Shaoliang Yu, Zhejiang Lab, China
- Marcus Ossiander, Graz University of Technology, Austria
